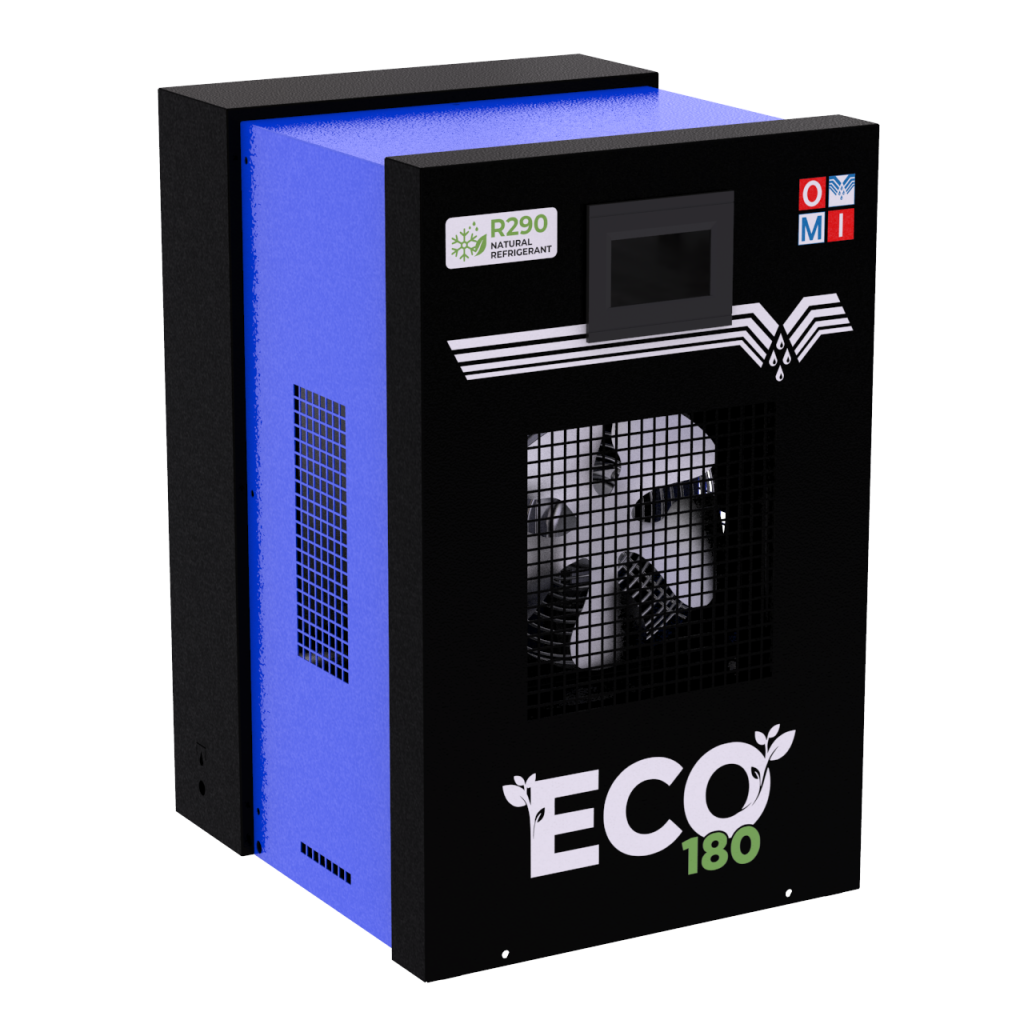

OMI Refrigerated air dryers
TECHNICAL DATA SHEET
| UOM | Rated* | Max | |
|---|---|---|---|
|
Air flow rate |
m³/h |
180 |
|
|
Inlet air temperature |
°C / °F |
35 / 95 |
60 / 140 |
|
Outlet air temperature |
°C / °F |
27 / 81 |
47 / 117 |
|
Ambient temperature |
°C / °F |
25 / 77 |
50 / 122 |
|
Working pressure |
bar / psi |
7 / 102 |
16 / 232 |
|
Pressure drop |
bar / psi |
0,12 / 1,7 |
0,34 / 4,9 |
|
Pressure dew point |
°C / °F |
3 / 37 |
|
|
Power consumption |
kW |
0,35 |
0,48 |
|
Power supply |
V/Ph/Hz |
230/1/50 |
|
|
Rated adsorption |
A |
1,6 |
2,3 |
|
Lock Rotor Ampere |
A |
18,8 |
|
|
Weight |
kg / Lbs |
35 / 77 |
|
|
Air connections |
BSP |
3/4" |
|
| Standard features | |
|---|---|
|
Refrigerant |
R290 / 0,15kg |
|
Tons of CO₂ equivalent |
0,0005 |
|
Control panel |
Electronic system type |
|
Condenser cooling |
Air cooled |
|
Ventilator motor |
Pusher fan |
|
Heat exchanger |
Aluminium plate |
|
Expansion method |
Capillary tube |
|
Separator type |
Demister type |
|
Compressor type |
Hermetic type |
|
Installation location |
Indoor |
|
Drain discharge |
No loss (Smart drain) |
|
Electric protection |
IP 42 |
* Performances refer to air suction of FAD 20°C (68°F), 1 bar (14.5 psig), and the following operating conditions: 7 bar (100 psig) working pressure, 3°C (37°F) pressure dewpoint, 25°C (77°F) ambient temperature, 35°C (95°F) compressed air inlet temperature.
Performances & specifications: +/- 5%
